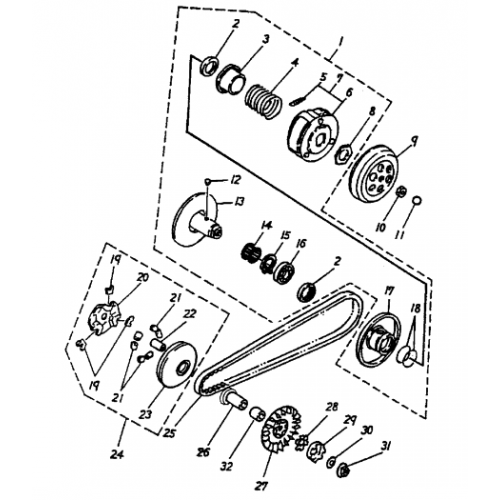

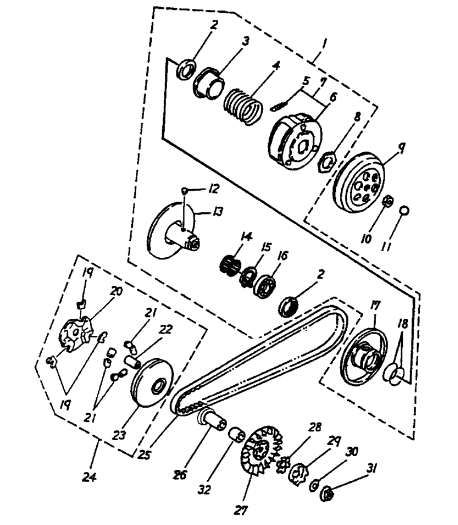

Clutch (Bombardier Mini DS 50 2T)

Change Assembly

Clutch (Bombardier Mini DS 50 2T)
# Product Code: Product Name Req'd Price:
1 A2200011600A Drive Face Ass'Y $120.06
2 A9650033394 Oil Seal (33 X 39 X 4) $5.49
3 A23237116000 Secondary Spring Seat $6.06
4 A2323311600A Compression Spring $8.79
5 A22401116000 Clutch Weight Spring $1.73
6 A22350116000 Clutch Carrier $37.80
7 A22535116000 Clutch Weight Set $36.86
8 A90202116000 Nut M28 $3.94
9 A22100116000 Clutch Cover Comp $32.74
10 A9400110000 Hex. Nut M10 $2.77
11 A91313104000 Oil Ring $0.69
12 A23225116000 Guide Pin $1.39
13 A23200116000 Secondary Fix Slot Wheel $53.48
14 A96200172518 Needle Bearing (Hks-17 X 25 X 18) $15.28
15 A945122400R Internal Circlip $0.87
16 A961006901U Radial Ball Bearing (6901Lu) $13.86
17 A23220116000 Secondary Sliding Slot Wheel $26.20
18 A91336104000 Oil Ring $2.08
19 A22132104000 Cam Plate Slider $1.25
20 A22131116000 Cam Plate $6.06
Showing 1 to 20 of 32 (2 Pages)
