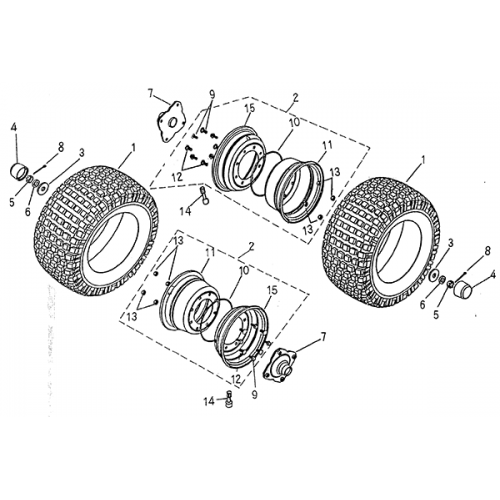

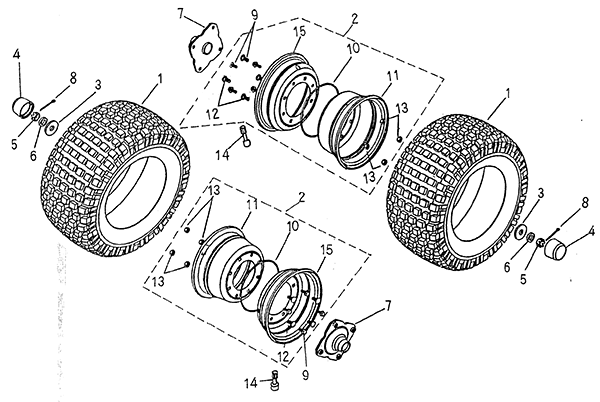

Rear Wheel (Blazer 50cc ATV)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Tire 16x8-7
42711-145-0A0
|
$72.69 | ||
| 2 |
Adly Rim Assembly, 7*5.2 (REV.2)
42701-145-000
|
|||
| 3 |
Plain Washer, 14*40*4.5
94101-1440045C
|
$1.67 | ||
| 4 |
Rubber Cover, ADLY
42814-145-000
|
|||
| 5 |
Scotch Flange Nut, 14mm
94051-14000-19
|
$4.18 | ||
| 6 |
Plain Washer, 14*26*3
94101-1426030
|
$1.34 | ||
| 7 |
Rear Wheel Hub (Rev.3)
42036-145-001
|
$41.58 | ||
| 8 |
Cotter Pin, 3*32
94201-30320B
|
$0.42 | ||
| 9 |
Hex Washer Face Bolt, 10*20
96000-10020-14B
|
$3.01 | ||
| 10 |
Oil Ring, 134.4*3.1
91134-145-000
|
$3.35 | ||
| 11 |
Outer Rim, 7*3.2
42703-145-000
|
$19.77 | ||
| 12 |
Square Bolt, 8*16
92008-08016
|
|||
| 13 |
Hex Flange Nut, 8mm
94050-08000
|
$0.84 | ||
| 14 |
Air Nozzle
42616-145-000
|
$4.18 | ||
| 15 |
Inner Rim, 7*1.8
42702-145-000
|
$19.77 |
