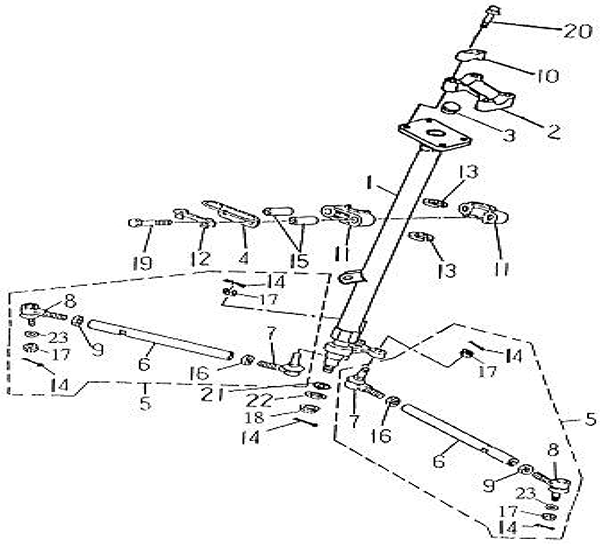

Steering (Barossa Silverhawk 250)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
COLUMN,STEERING
42101-RAM-02
|
|||
| 2 |
BRIDGE,TOP
42106-SK9-00
|
$18.83 | ||
| 3 |
PLUG, TAPER
42111-RAM-00
|
$2.78 | ||
| 4 |
BRACKET, STRG LOWER
42118-RAM-00
|
$6.97 | ||
| 5 |
ROD, TIE ASS'Y
42140-RAM-00
|
$77.88 | ||
| 6 |
ROD, TIE
42141-RAM-00
|
$10.46 | ||
| 7 |
JOINT, UNIVERSAL 1
42142-RAM-00
|
$31.38 | ||
| 8 |
JOINT, UNIVERSAL 2
42143-RAM-00
|
$36.21 | ||
| 9 |
NUT
42146-RAM-00
|
$1.05 | ||
| 10 |
HOLDER, HANDLE UPPER
46125-RAM-00
|
$6.97 | ||
| 11 |
BEARING, STEERING
46411-RAM-00
|
$2.79 | ||
| 12 |
WASHER, LOCK
46416-RAM-00
|
$0.35 | ||
| 13 |
OIL SEAL
46417-RAM-00
|
$0.70 | ||
| 14 |
PIN, COTTER 2.3*20
90240-23020-B
|
$0.21 | ||
| 15 |
COLLAR
93510-081442-C
|
$4.18 | ||
| 16 |
NUT,HEXAGON
95201-101408-C
|
$0.68 | ||
| 17 |
NUT, CASTLE
95321-101710-C
|
$4.18 | ||
| 18 |
NUT, FLANGE
95401-101409-B
|
$0.96 | ||
| 19 |
BOLT, HEXAGON
96210-08060-B
|
$1.39 | ||
| 20 |
BOLT,FLANGE
96414-08050-B
|
$1.39 |
