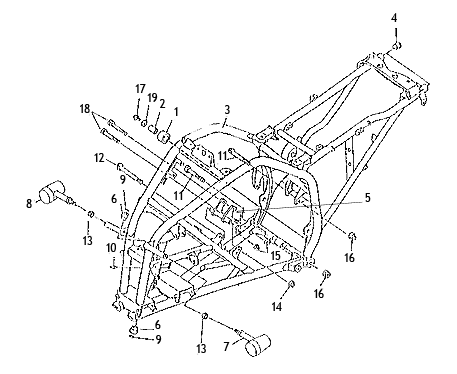

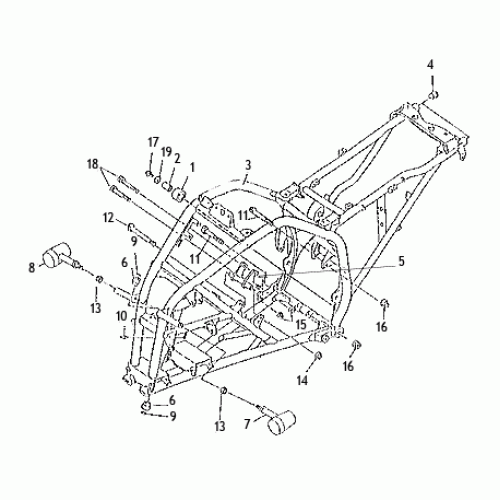

Frame (Kasea Skyhawk 250 Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
TENSIONER
32167-RAM-00
|
$6.97 | ||
| 2 |
BUSH
32168-RAM-00
|
$2.61 | ||
| 3 |
FRAME COMP
41110-CBT-03
|
$561.56 | ||
| 4 |
PLUG, SPECIAL SHAPE
41154-RAM-00
|
$1.39 | ||
| 5 |
ENGINE HANGER F
41181-CBT-00
|
$26.36 | ||
| 6 |
BUSH, SOLID
46412-RAM-00
|
$4.18 | ||
| 7 |
WINKER ASS'Y,L/H FRONT
55350-RAM-00
|
$23.85 | ||
| 8 |
WINKER ASS'Y,R/H FRONT
55360-RAM-00
|
$23.85 | ||
| 9 |
O-RING 2.4*14.8
93210-24148
|
$1.39 | ||
| 10 |
NIPPLE, GREASE M6*P1.0
94340-06010-B
|
$0.70 | ||
| 11 |
BOLT,FLANGE
94610-10113-B
|
$4.18 | ||
| 12 |
BOLT,FLANGE
94610-12125-B
|
$4.18 | ||
| 13 |
NUT,HEXAGON
95201-101408-B
|
$0.68 | ||
| 14 |
NUT, NYLON
95311-121912-B
|
$2.09 | ||
| 15 |
NUT, FLANGE
95401-081208-B
|
$0.82 | ||
| 16 |
NUT, FLANGE
95401-101409-B
|
$0.96 | ||
| 17 |
BOLT, FLANGE
96414-08012-B
|
$1.26 | ||
| 18 |
BOLT,FLANGE
96414-10070-B
|
$2.79 | ||
| 19 |
WASHER, PLATE 8.7*24*2.0
97201-082420-B
|
$0.70 |
