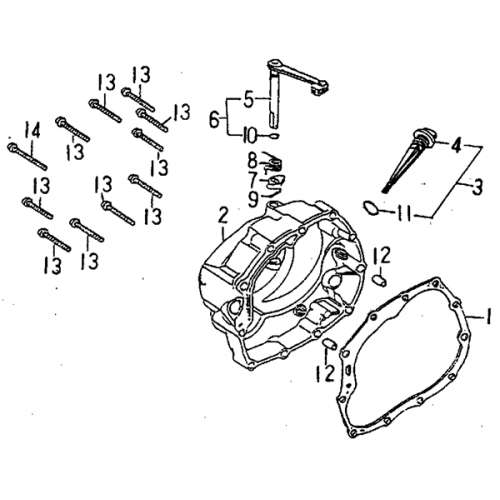

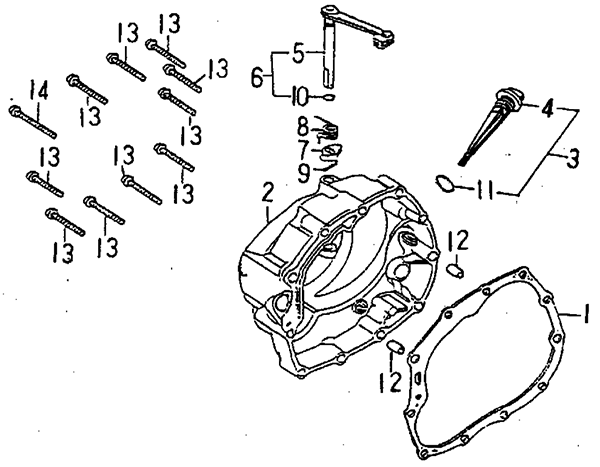

Right Crankcase Cover (Barossa ATV 170)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
GASKET, R CRANKCASE COVER
15221-CHP-00
|
$11.28 | ||
| 2 |
COVER, R CRANKCASE COMP
15511-RAM-00
|
$89.76 | ||
| 3 |
GAUGE ASS'Y OIL LEVER
15561-CHP-00
|
$8.35 | ||
| 4 |
GAUGE, OIL LEVEL
15563-CHP-00
|
$5.56 | ||
| 5 |
LEVER, CLUTCH
25723-CHP-00
|
$12.55 | ||
| 6 |
LEVER COMP, CLUTCH
25725-CHP-00
|
$15.06 | ||
| 7 |
CAM, CLUTCH LIFTER
25732-CHP-00
|
$7.06 | ||
| 8 |
SPRING, CLUTCH LEVER
25753-CHP-00
|
$3.02 | ||
| 9 |
PIN COTTER 1.8*16
90240-18016-B
|
$0.35 | ||
| 10 |
O-RING 1.9*6.8
93210-19068
|
$1.05 | ||
| 11 |
O-RING 3*18
93210-30180
|
$1.39 | ||
| 12 |
PIN, DOWEL 8*14
94410-08014
|
$1.39 | ||
| 13 |
BOLT, FLANGE
96411-06040-B
|
$1.39 | ||
| 14 |
BOLT, FLANGE
96411-06050-B
|
$1.26 |
