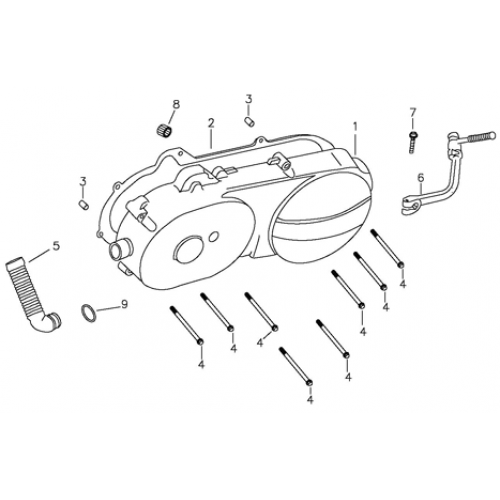

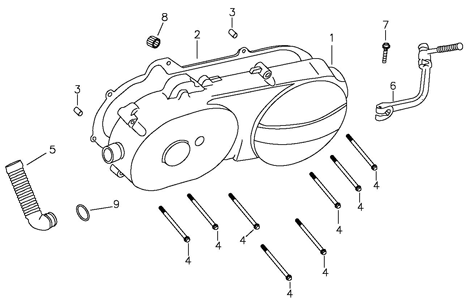

Left Crankcase Cover (Adly ATV 90II 4T (CVT))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Left Cover
11341-175-000
|
$97.33 | ||
| 2 |
Left Cover Gasket
11359-133-000
|
$12.45 | ||
| 3 |
Dowel Pin, 6.3*8*14
94301-08140
|
$1.26 | ||
| 4 |
Hex Washer Face Bolt, 6*35
96000-06035-08B
|
$1.09 | ||
| 5 |
Duct L. Crankcase Cover
11345-238-000
|
$11.86 | ||
| 6 |
Kick Starter Arm Ass'Y
28300-175-001
|
$36.56 | ||
| 7 |
Hex Washer Face Bolt, 6*25
96000-06025-10K
|
$1.00 | ||
| 8 |
Needle Bearing, 8*12*10
96200-081210
|
$11.86 | ||
| 9 |
Clip
94510-31000
|
