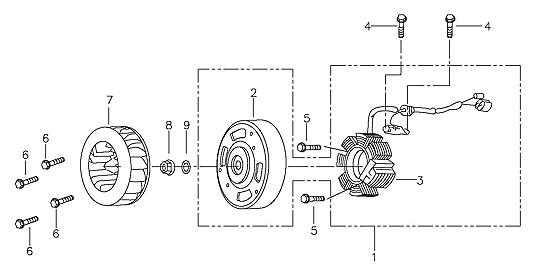

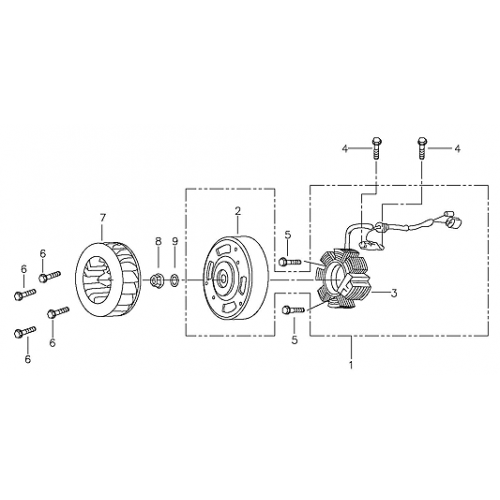

Generator (Adly ATV 90II 4T (CVT))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Generator Ass'Y
31100-133-000
|
|||
| 2 |
Generator Flywheel
31110-133-000
|
|||
| 3 |
Stator Comp
31120-133-000
|
$137.80 | ||
| 4 |
Hex Bolt, 5*12
92000-05012-08C
|
$0.67 | ||
| 5 |
Hex Washer Face Bolt, 6*20
96000-06020-08C
|
$0.84 | ||
| 6 |
Hex Washer Face Bolt, 6*18
96000-06018-08C
|
$1.00 | ||
| 7 |
Fan
19510-133-000
|
$15.82 | ||
| 8 |
Hex Flange Nut With Serration, 10mm
94050-10000C
|
$1.26 | ||
| 9 |
Plain Washer, 10*22*1
94101-1022010C
|
$0.50 |
