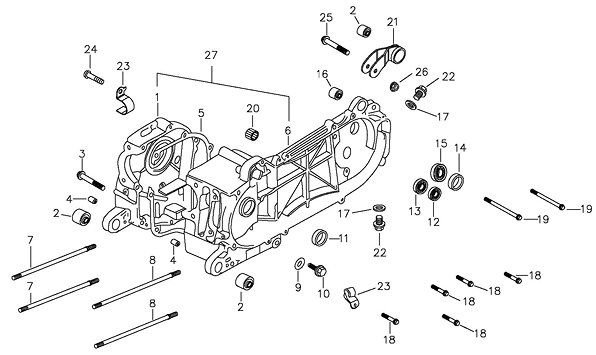

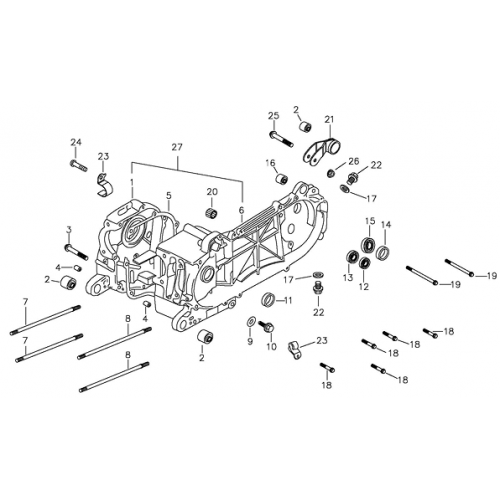

Crankcase (Adly ATV 90II 4T (CVT))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Right Crankcase
11101-175-000
|
$120.34 | ||
| 2 |
Bush, Engine Hanger Rubber, 10*28*20
96400-102820
|
$4.18 | ||
| 3 |
Hex Flange Bolt, 6*50
96000-06050-08C
|
$1.00 | ||
| 4 |
Dowel Pin, 6.3*8*14
94301-08140
|
$1.26 | ||
| 5 |
Gasket Crankcase
11191-133-000
|
$5.86 | ||
| 6 |
Left Crankcase
11201-175-000
|
$145.74 | ||
| 7 |
Stud Bolt, 7*168
91001-07168C
|
$5.13 | ||
| 8 |
Stud Bolt, 7*176
91001-07176C
|
$5.56 | ||
| 9 |
Plain Washer, 12*21.3*2
94104-1221320
|
$2.68 | ||
| 10 |
Hex Flange Bolt, 12*15
96000-12015-17C
|
$3.35 | ||
| 11 |
Oil Seal, 19.8*30*5
96500-19305-V
|
$5.25 | ||
| 12 |
Radial Ball Bearing, 6203
96100-62030
|
$10.46 | ||
| 13 |
Radial Ball Bearing, 6201C3
96100-62010
|
|||
| 14 |
Oil Seal, 17*30*6
96500-17306
|
$2.82 | ||
| 15 |
Radial Ball Bearing, 6203 SPC
96100-6203S
|
$26.36 | ||
| 16 |
Rubber Bushing, 8*20*19
96400-082020-0A
|
$4.76 | ||
| 17 |
Plain Washer, 8*16*2
94101-0816020C
|
$0.50 | ||
| 18 |
Hex Flange Bolt, M8*35
96000-08035-12G
|
$2.01 | ||
| 19 |
Hex Washer Face Bolt, 8*40
96000-08040-12G
|
$1.59 | ||
| 20 |
Needle Bearing, 8*12*10
96200-081210
|
$11.86 |
