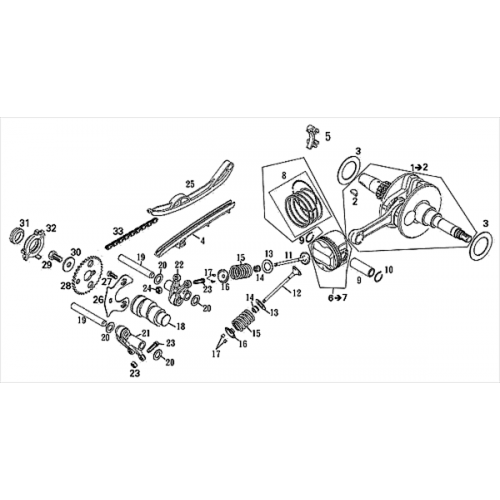

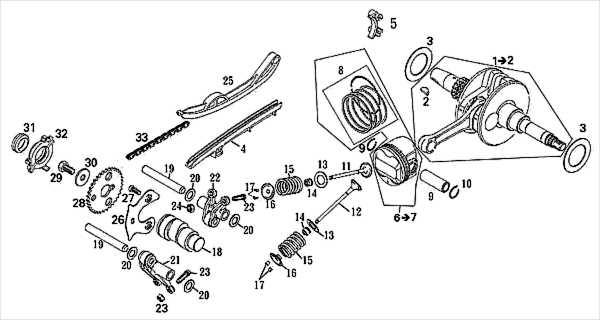

Crankshaft and Piston (Adly ATV 220S)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Crankshaft Ass'Y
13000-179-000
|
|||
| 2 |
Semicycle Key
90471-179-000
|
$4.18 | ||
| 3 |
Thrust Washer, 32*50*1
94105-3250010A
|
$4.18 | ||
| 4 |
Cam Chain,Guide
14500-179-000
|
$13.18 | ||
| 5 |
Chain Guide
14524-179-000
|
$8.20 | ||
| 6 |
Piston, 61.95mm
13100-179-000
|
|||
| 7 |
Piston Ass'Y, 61.95mm
13110-179-000
|
|||
| 8 |
Piston Ring Set, 62*2.0*2.5
13011-179-000
|
$49.17 | ||
| 9 |
Piston Pin
13111-179-000
|
$10.98 | ||
| 10 |
Piston Pin Clip
13115-179-000
|
$0.89 | ||
| 11 |
Inlet Valve
14711-179-000
|
$25.70 | ||
| 12 |
Ex. Valve
14721-179-000
|
$31.99 | ||
| 13 |
Thrust Washer, 12.5*21.5*0.5
14775-179-000
|
$3.68 | ||
| 14 |
Seal Valve
12209-179-000
|
$5.86 | ||
| 15 |
Valve Spring
14751-179-000
|
$7.03 | ||
| 16 |
Valve Spring Retainer
14771-179-000
|
$7.61 | ||
| 17 |
Valve Cotter
14781-179-000
|
$3.92 | ||
| 18 |
Camshaft Comp
14400-179-000
|
$60.37 | ||
| 19 |
Pin, 10*75
14451-179-000
|
$9.96 | ||
| 20 |
Thrust Washer, 10.5*16*0.5
94105-1016005A
|
$1.26 |
