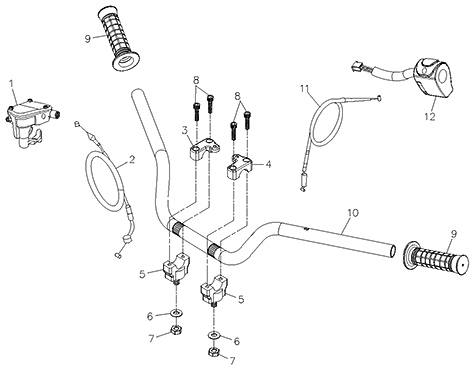

Handle Bar (Adly ATV 200S)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Throttle Lever Ass'Y
53170-169-000
|
$56.73 | ||
| 2 |
Throttle Cable
17910-261-000
|
$29.00 | ||
| 3 |
Right Handle Bar Clamp
53103-145-000
|
|||
| 4 |
Left Handle Bar Clamp
53102-145-000
|
|||
| 5 |
Handle Bar Bottom Clamp
53101-154-000
|
$11.60 | ||
| 6 |
Plain Washer, 10*22*2.5
94105-1022025G
|
$2.09 | ||
| 7 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 | ||
| 8 |
Hex Socket Bolt, 6*25
91000-06025B
|
$1.00 | ||
| 9 |
Handle Grip Set
53165-179-000
|
$15.82 | ||
| 10 |
Handle Bar
53100-197-000
|
$36.56 | ||
| 11 |
Choke Cable
17950-261-000
|
$23.06 | ||
| 12 |
Handle
35200-179-000
|
$61.60 |
