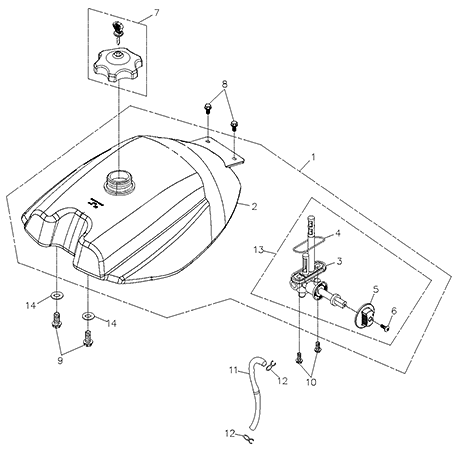

Fuel System (Fuel Tank) (Adly ATV 200S)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Fuel Tank Ass'Y
17511-169-001
|
$159.99 | ||
| 2 |
Fuel Tank Comp
17500-169-001
|
|||
| 3 |
Fuel Cap Body
16953-169-00A
|
|||
| 4 |
Fuel Cup Ring
16951-169-000
|
$3.35 | ||
| 5 |
Fuel Valve Knob
17622-145-000
|
$4.02 | ||
| 6 |
Pan Phillips Bolt, 4*12
93500-04012
|
$3.35 | ||
| 7 |
Adly Fuel Cap Ass'Y
17620-179-000
|
$35.01 | ||
| 8 |
Hex Washer Face Bolt, 6*14
92006-06014-10G
|
$2.09 | ||
| 9 |
Ladder Bolt
90111-08008-12G
|
$3.63 | ||
| 10 |
Hex Flange Bolt, 6*12
96000-06012-08B
|
$0.67 | ||
| 11 |
Fuel Tube, 5.3*10.5*460
94400-0510460
|
|||
| 12 |
Spring Clamp
94513-09000
|
$1.26 | ||
| 13 |
Fuel Cup
16950-169-00A
|
|||
| 14 |
Rubber Washer, 10*20*2
94102-1022020
|
$2.68 |
