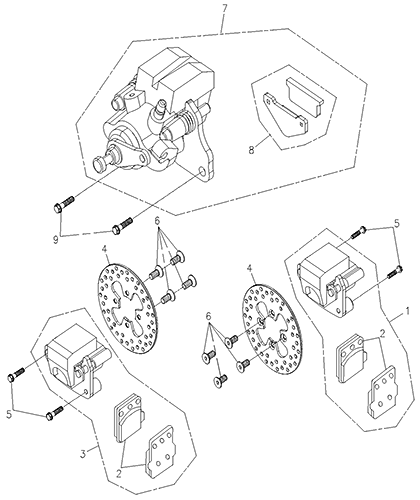

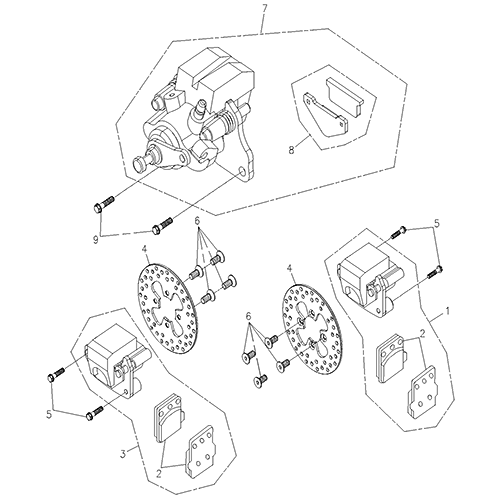

Brake Caliper (Adly ATV 200S)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
R. Front Brake Caliper Assembly
45000-256-000
|
$132.37 | ||
| 2 |
Front Brake Pad Kit
45120-256-000
|
$37.82 | ||
| 3 |
L. Front Brake Caliper Ass'Y
45200-256-000
|
$155.10 | ||
| 4 |
Brake Disc, 164mm
45015-169-000
|
$85.01 | ||
| 5 |
Hex Flange Bolt, M8*20
96000-0802012GL
|
$2.01 | ||
| 6 |
Hex Socket Bolt, M8*18
93901-08018G
|
|||
| 7 |
Rear Brake Caliper Ass'Y
43000-256-000
|
$200.56 | ||
| 8 |
Brake Pad Kit
43120-256-000
|
$40.34 | ||
| 9 |
Hex Washer Face Bolt, 10*28
96000-10028-14G
|
$3.26 |
