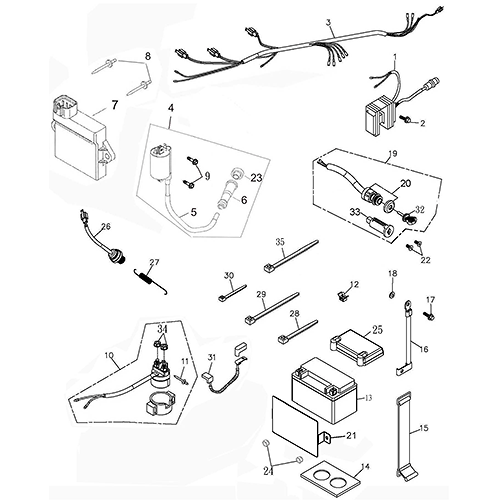

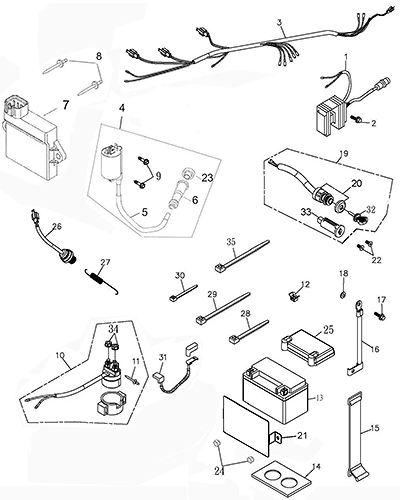

Battery and Wire Harness (Adly ATV 200S)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Voltage Regulator(25A), SUMITOMO
31600-179-000
|
$104.72 | ||
| 2 |
Hex Washer Face Bolt, 6*15
96000-06015-10G
|
$1.47 | ||
| 3 |
Main Wire Harness
32100-261-000
|
$60.37 | ||
| 4 |
Ignition Coil Ass'Y, 10KOm
30500-179-001
|
$67.76 | ||
| 5 |
Ignition Coil
30510-179-000
|
|||
| 6 |
Spark Plug Connector, 10KOm
30700-179-001
|
|||
| 7 |
Electronic Module
30410-179-000
|
$199.22 | ||
| 8 |
Hex Washer Face Bolt, 6*12
96000-06012-08G
|
$0.67 | ||
| 9 |
Hex Washer Face Bolt, 6*20
96000-06020-08C
|
$0.84 | ||
| 10 |
Starter Solenoid, REV.a
38501-179-000
|
$51.69 | ||
| 11 |
Hex Bolt(Triange), 6*12
92003-06012
|
|||
| 12 |
Push Tie Mount
90801-179-000
|
|||
| 13 |
Battery, YB-14A/A2
31500-179-000
|
$101.33 | ||
| 14 |
Rubber Pad
30003-179-000
|
|||
| 15 |
Battery Strap, 140mm
31520-179-000
|
$4.98 | ||
| 16 |
Ground Cable
32103-179-000
|
|||
| 17 |
Hex Washer Face Bolt, 6*12
96000-06012-10G
|
$1.34 | ||
| 18 |
Ext. Toothed Lock Washer, 6*11*0.6
94115-0611006
|
$0.84 | ||
| 19 |
Key Set
35010-261-000
|
$52.95 | ||
| 20 |
Ignition Switch
35100-261-000
|
$43.88 |
