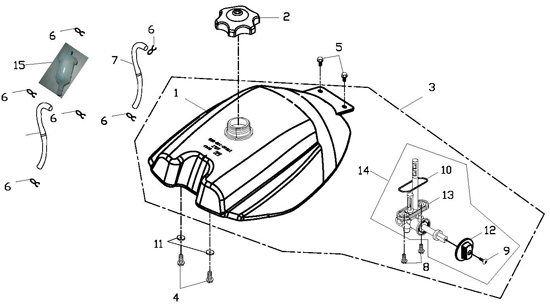

Fuel Tank (Adly ATV 150S II CrossXRoad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Fuel Tank Comp
17500-169-001
|
|||
| 2 |
Adly Fuel Cap Ass'Y
17620-179-000
|
$35.01 | ||
| 3 |
Fuel Tank Ass'Y
17511-197-001
|
|||
| 4 |
Ladder Bolt
90111-08008-12G
|
$3.63 | ||
| 5 |
Hex Flange Bolt, 6*16
96000-06016-10G
|
$0.67 | ||
| 6 |
Clip, 8*0.8
94510-08000
|
$0.69 | ||
| 7 |
Hose, 4.8*8*150
94400-0408150
|
$5.86 | ||
| 8 |
Hex Washer Face Bolt, 6*14
96000-06014-08C
|
$1.34 | ||
| 9 |
Pan Phillips Bolt, 4*12
93500-04012
|
$3.35 | ||
| 10 |
Fuel Cup Ring
16951-169-000
|
$3.35 | ||
| 11 |
Rubber Washer, 10*20*2
94102-1022020
|
$2.68 | ||
| 12 |
Fuel Valve Knob
17622-145-000
|
|||
| 13 |
Fuel Cap Body
16953-197-000
|
|||
| 14 |
Fuel Cup
16950-169-000,16950-169-00A
|
|||
| 15 |
Petrol Filter
16952-145-000,16952-101-000
|
