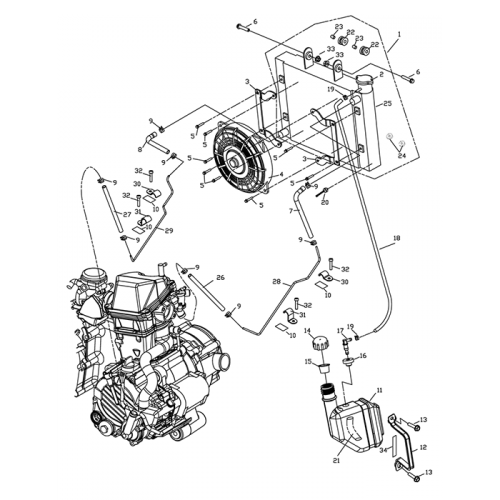

Cooling System (Adly Mini Car 320)

Change Assembly

Cooling System (Adly Mini Car 320)
# Product Name Req'd Price:
1 Radiator Assy
19000-912-000
$166.70 $125.02
2 Pressure Cap
19110-179-000
$15.82 $11.86
3 Grommet
19104-179-000
4 Bushing
19105-179-000
5 Grommet
19108-179-000
6 Radiator Body
19100-912-000
$162.07 $121.55
7 Radiator Fan Plate
19123-912-000
$12.68 $9.51
8 Radiator Fan Assy
19120-501-000
$157.44 $118.08
9 Clamp
94516-27000
9 Hex Washer Face Bolt, 6*14
92006-06014-10G
$2.09 $1.57
10 Coolant Pipe Hook Isolation Gasket, 20*25*4.1
19132-912-000
$1.04 $0.78
10 Hex Flange Bolt, M8*25
96000-08025-12G
$2.01 $1.51
11 Coolant Tank, REV.A
19200-179-000
$15.82 $11.86
11 Hose Rad. In
19107-912-001
$18.26 $13.69
12 Hose Rad. Out
19102-912-001
$11.66 $8.75
12 Tank Anchor
19201-179-000
$15.82 $11.86
13 Hex Flange Bolt, 6*16
96000-06016-10G
$0.67 $0.50
14 Coolant Tank Cap
19210-179-000
15 Cap Protector
19211-179-000
$0.96 $0.72
16 Grommet
19106-179-000
$1.67 $1.26
Showing 1 to 20 of 34 (2 Pages)
