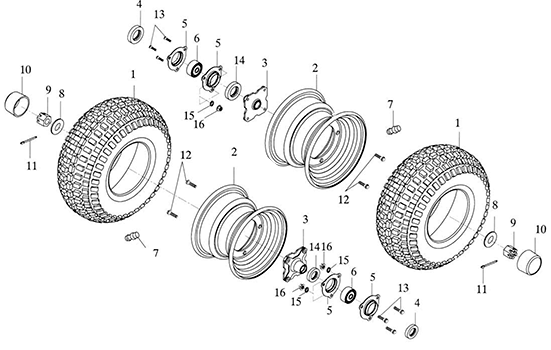

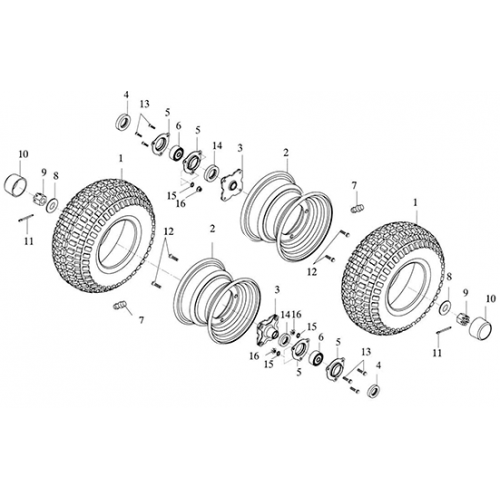

Rear Wheel (Adly GK-125 (BK-125) 2005)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Tire 18x9.5-8
42811-168-000
|
$72.69 | ||
| 2 |
Rear Rim, 8*7
42801-146-000
|
$60.37 | ||
| 3 |
Adly Go Kart Rear Hub
42036-168-000
|
$36.56 | ||
| 4 |
Oil Seal, 40*28*6
96500-40286
|
$2.93 | ||
| 5 |
Bearing Holder
96600-168-000
|
$8.39 | ||
| 6 |
Radial Ball Bearing, 6005TMBOOS
96100-60050
|
$17.12 | ||
| 7 |
Air Nozzle
42616-145-000
|
$4.18 | ||
| 8 |
Plain Washer, 16*40*5
94101-1640050
|
|||
| 9 |
Hex Slotted Nut, 16mm
94051-16000-24
|
|||
| 10 |
Rubber Cover, ADLY
42814-145-000
|
|||
| 11 |
Cotter Pin, 3*32
94201-03320
|
|||
| 12 |
Hex Washer Face Bolt, 10*20
96000-10020-14
|
$3.01 | ||
| 13 |
Hex Washer Face Bolt, 8*20
96000-08020-12
|
$1.67 | ||
| 14 |
Oil Seal, 40*25*7
96500-40257
|
$4.18 | ||
| 15 |
Spring Washer, 8.5*13*2
94111-0813020
|
$0.84 | ||
| 16 |
Nylon Insert Lock Nut, 8mm
90350-08000
|
$3.34 |
