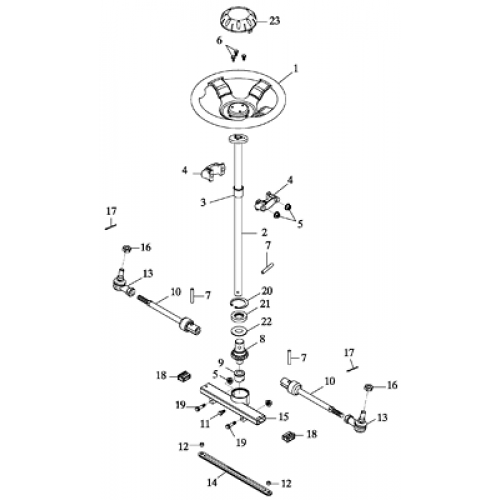

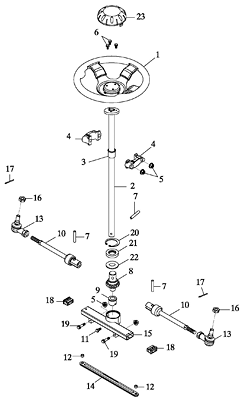

Steering (Adly GK-125 2009)

Change Assembly

Steering (Adly GK-125 2009)
# Product Name Req'd Price:
1 Steering Wheel
53100-168-000
$93.63
2 Steering Shaft Ass'Y(Rev.1)
51109-168-00C
$49.17
3 Pu Bushing
51114-145-000
4 Steering Shaft Holder
51113-145-00A
$7.99
5 Hex Flange Nut With Serration, 8mm
94050-08000C
$0.84
6 Hex Washer Face Bolt, 6*12
96000-06012-10G
$1.34
7 Split Spring Pin, 6*24
94305-06240
$1.34
8 Steering Drive Gear
40620-168-000
9 Bush
40621-168-001
$25.04
10 Inner Tie Rod(Rack Ends)
44502-168-000
$36.31
11 Hex Bolt, 5*12
92000-05012-08C
$0.67
12 Spacer
40612-168-000
$2.09
13 Ball Joint, Right Thread, ECO
44521-145-000
$38.81
13 Ball Joint,Right Thread, ECO
44521-145-002
14 Rack
40610-168-000
15 Rack Cover(Rev.1)
40611-168-000
$26.36
16 Nylon Nut, M10*P1.25
90350-10000G
$0.67
17 Cotter Pin, 2*19
94201-20190B
$0.42
18 Bush
51201-168-000
$2.51
19 Hex Washer Face Bolt, 8*48
96000-08048-12G
$2.68
Showing 1 to 20 of 24 (2 Pages)
