Rear Brake (Adly ATV 90RV 4T)

Change Assembly

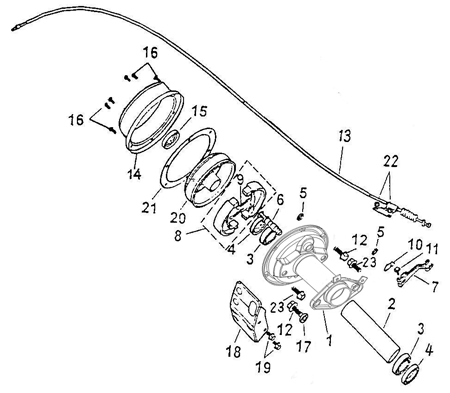

Rear Brake (Adly ATV 90RV 4T)
# Product Name Req'd Price:
1 Rear Brake Panel
43101-201-001
2 Rear Brake Panel Spacer
42313-145-000
$11.72
3 Radial Ball Bearing, 6006ZZ
96100-6006ZZ
4 Oil Seal, 35*55*11
96500-355511
5 Oil Seal, 14*20*4
96500-14204
6 Rear Brake Cam Shaft(Rev.1)
43141-145-000
$11.70
7 Rear Brake Arm
43410-145-000
$12.45
8 Rear Brake Shoe Comp.(Rev.1)
43120-145-000
$34.72
9 Shoe Strain Spring, 1.6*36
43151-145-000
10 Return Spring
42617-145-000
$2.01
11 Hex Washer Face Bolt, 6*32
96000-06032-10C
$1.00
12 Hex Washer Face Bolt, 12*27
96000-1202717CL
$5.28
13 Rear Brake Cable
43450-145-000
$44.99
14 Rear Drum Cover(Rev.1)
42612-145-000
$50.43
15 Oil Seal, 32*52*11
96500-325211
16 Hex Washer Face Bolt, 6*12
96000-06012-08G
$0.67
17 Plain Washer, 12*25*5
94101-1225050C
$2.01
18 Right Rear Brake Cover
42613-145-000
$11.86
19 Hex Washer Face Bolt, 8*12
96000-08012-12G
$1.00
20 Rear Drum(Rev.2)
42601-145-000
$85.01
Showing 1 to 20 of 23 (2 Pages)
