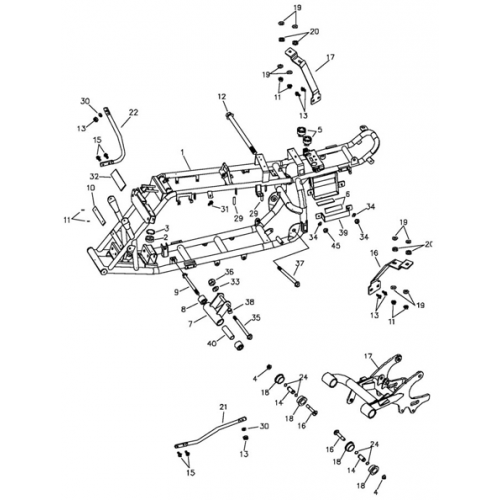

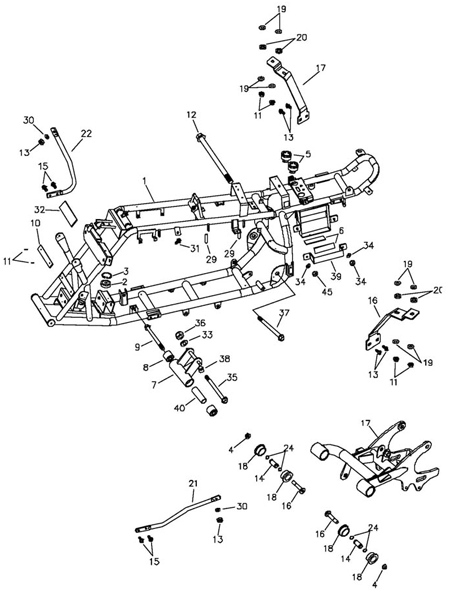

Frame Body (Adly ATV 90RV 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Frame Comp
50100-206-000
|
|||
| 2 |
Radial Ball Bearing, 6002ZZ
96100-6002ZZ
|
$11.98 | ||
| 3 |
Internal Cir Clip, RTW-32
94512-3200R
|
$1.34 | ||
| 4 |
Nut, 14mm
94053-14000G
|
|||
| 5 |
Rubber
77211-145-000
|
$2.68 | ||
| 6 |
Sponge Pad, 15*100*4
17505-145-000
|
$4.02 | ||
| 7 |
Engine Bracket Ass'Y
50350-213-000
|
|||
| 8 |
Hex Flange Bolt, M10*105
96000-10105-14G
|
|||
| 9 |
Hex Washer Face Bolt, 10*120
96000-10120-14G
|
$6.59 | ||
| 10 |
Swing Arm Bolt
52116-201-000
|
|||
| 11 |
Nut Nylon, 6mm
90350-06000C
|
|||
| 12 |
Swing Arm Spacer, 2T-50.100
52104-201-000
|
|||
| 13 |
Hex Bolt, 6*14
92000-06014-10G
|
$1.00 | ||
| 14 |
Swing Arm Sub Ass'Y
52100-201-001
|
|||
| 15 |
Bush
52103-145-000
|
$5.30 | ||
| 16 |
Rear Cover Up Left Fixed Plate
83402-181-001
|
|||
| 17 |
Rear Cover Up Right Fixed Plate
83403-181-001
|
|||
| 18 |
Nylon Nut, 10mm*1.25
90350-10000C
|
$1.92 | ||
| 19 |
Plain Washer, 6*18*2
94101-0618020B
|
$0.50 | ||
| 20 |
Rubber Washer
94102-145-000
|
$4.18 |
