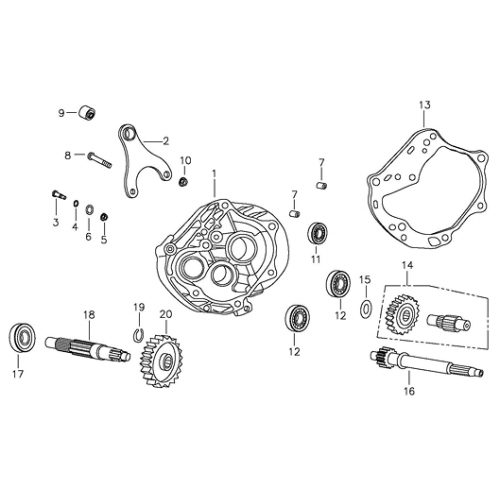

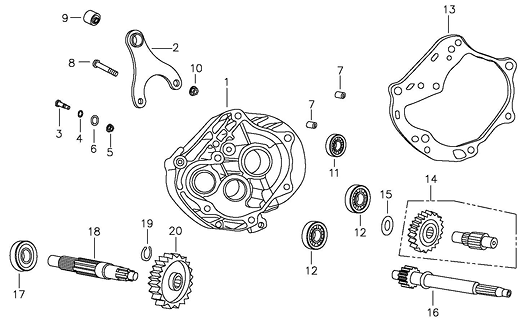

Transmission (Adly ATV 90II 4T (CVT))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Mission Cover
21301-175-000
|
$59.99 | ||
| 2 |
Crankcase Right Bracket(Rev.1)
11202-175-000
|
$20.10 | ||
| 3 |
Fix Shaft
45110-175-000
|
$15.82 | ||
| 4 |
Oil Ring, 7.5*1.5
91307-101-000
|
$0.84 | ||
| 5 |
Hex Flange Nut With Serration, 8mm
94050-08000C
|
$0.84 | ||
| 6 |
Plain Washer, 8*16*2
94104-0816020
|
$1.67 | ||
| 7 |
Dowel Pin, 8.5*10*20
94301-10200
|
$1.34 | ||
| 8 |
Fix Shaft, M14*48mm
45111-175-000
|
$5.86 | ||
| 9 |
Bush, Engine Hanger Rubber, 10*28*20
96400-102820
|
$4.18 | ||
| 10 |
Scotch Flange Nut, 14mm
94052-14000-21C
|
$4.18 | ||
| 11 |
Radial Ball Bearing, 6004LLU
96100-6004U
|
$18.45 | ||
| 12 |
Radial Ball Bearing, 6201C3
96100-62010
|
|||
| 13 |
Mission Cover Gasket
21395-133-000
|
$7.32 | ||
| 14 |
Main Axle Comp, 47T*13T
23420-133-000
|
$49.80 | ||
| 15 |
Plain Waher, 12*20*1.3
94102-1220013
|
$5.86 | ||
| 16 |
Drive Shaft, 17T
23411-133-000
|
$40.97 | ||
| 17 |
Oil Seal, 27*42*7
96500-27427
|
$2.43 | ||
| 18 |
Final Shaft, 138mm
23431-175-000
|
|||
| 19 |
External Cir Clip, STW-20
94511-2000S
|
$1.67 | ||
| 20 |
Final Gear, 40T
23432-133-000
|
$49.80 |
