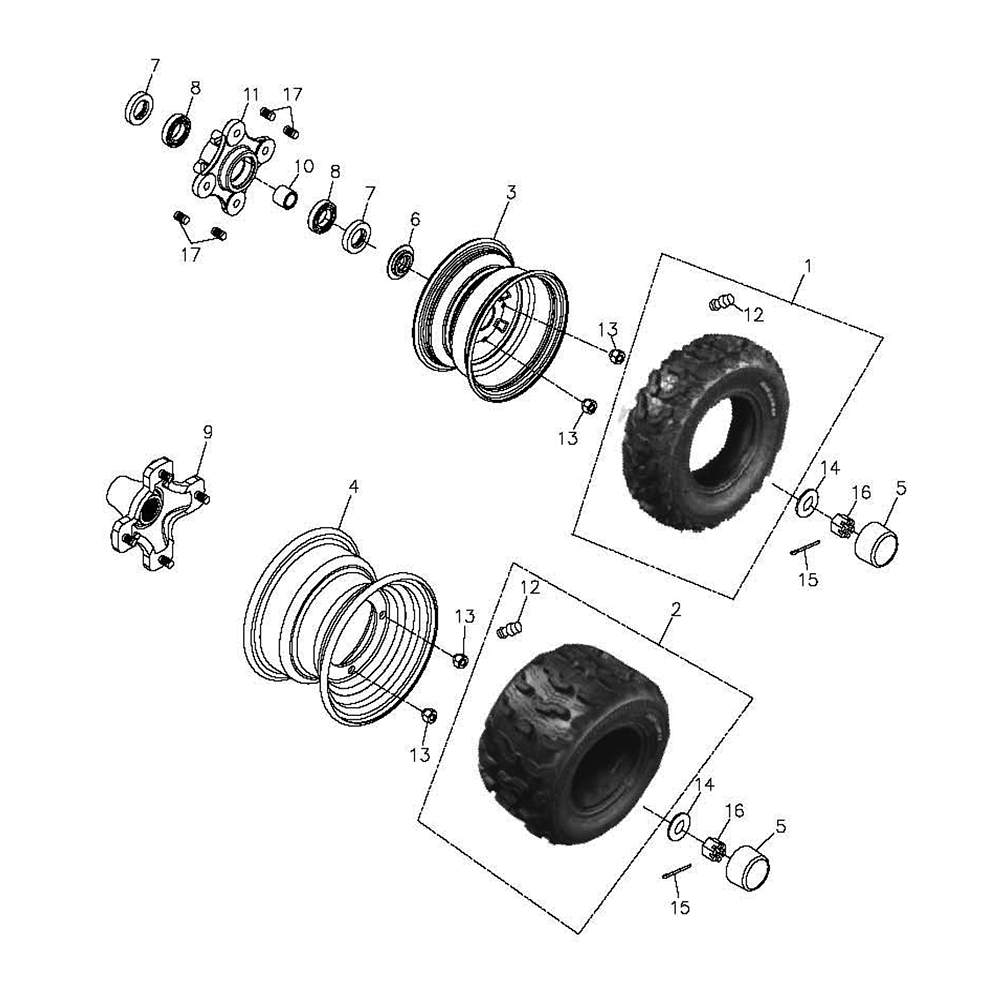

Wheel Front and Rear

Change Assembly

Wheel Front and Rear
# Product Name Req'd Price:
1 FRONT TIRE
42711-303-000
2 REAR TIRE
42811-303-000
3 FRONT RIM
42701-258-001BK
4 REAR RIM
42801-258-001BK
5 Rubber Cover, ADLY
42814-145-000
6 Collar
42707-169-000
$25.04
7 Oil Seal, 29.3*43.6*4.5
96500-29435
$3.61
8 Radial Ball Bearing, 6004ZZCM/2A-T0
96100-6004ZZ
$16.99
9 REAR SHAFT HUB(RD)
42037-256-000RD
10 Coller
42705-169-000
$7.32
11 FRONT WHEEL HUB(RD)
42036-169-000RD
12 Air Nozzle
42616-145-000
$4.18
13 Wheel Nut, M10*18
94001-10018B
14 Plane Washer, 18*40*4.5
94101-1840045C
$4.18
15 Cotter Pin, 3*45
94201-30450B
$0.50
16 Scotch Nut, M18
94051-18000B
$5.86
17 Hub Stud Bolt, 10*35
96005-10035C
$3.91
Showing 1 to 17 of 17 (1 Pages)
