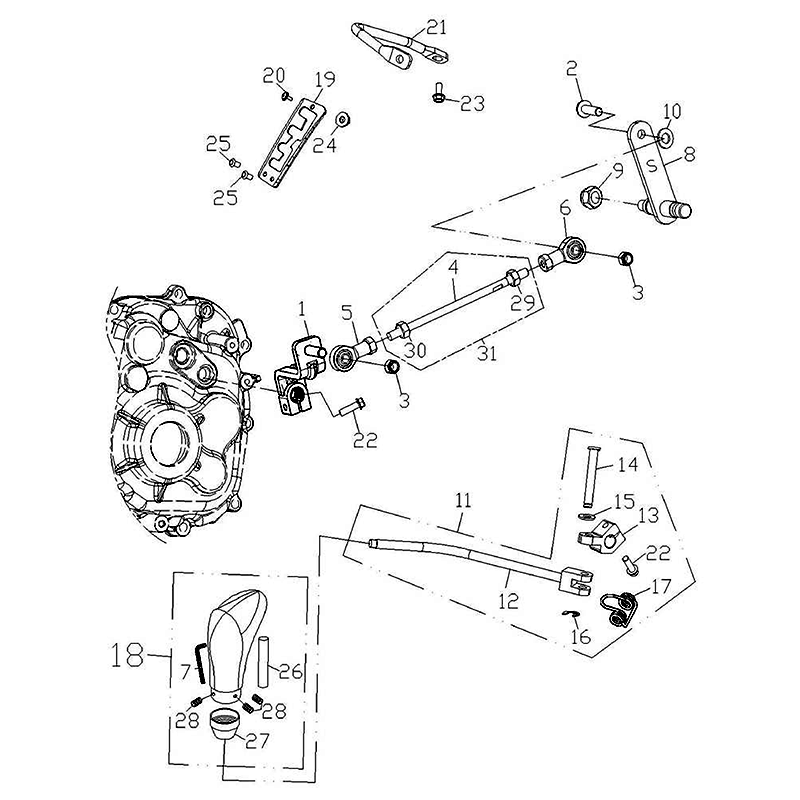

Gear Shift System
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Shift Lever-Rev.1
24811-256-000
|
|||
| 2 |
Hex Washer Face Bolt, M8*28
96000-08028-12G
|
$2.18 | ||
| 3 |
Nut, 8mm
94053-08000G
|
$2.09 | ||
| 4 |
CONNECTING ROD
91001-08500B
|
|||
| 5 |
Rod End (Left Thread)
24714-256-000
|
|||
| 6 |
Rod End (Right Thread)
24715-256-000
|
|||
| 7 |
Spanner
24812-197-000
|
|||
| 8 |
SHIFTING PLATE
24705-225-00A
|
|||
| 9 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 | ||
| 10 |
Plain Washer, 8*16*2
94101-0816020B
|
$0.50 | ||
| 11 |
SHAFT LEVER ASSY
24720-225-000
|
|||
| 12 |
SHAFT ROD
24701-225-000
|
|||
| 13 |
Shaft Lever
24719-256-000
|
|||
| 14 |
Pin
24716-256-000
|
|||
| 15 |
Plain Washer, 8*16*2
94101-0814020G
|
$0.84 | ||
| 16 |
External Cir Clip, ETW-7
94511-0700E
|
$0.50 | ||
| 17 |
Shaft Rod Return Spring
24708-256-000
|
|||
| 18 |
Knob
24807-197-000
|
$36.56 | ||
| 19 |
SHAFT LEVEL PLATE
24712-225-000
|
|||
| 20 |
PAN PHILLIPS BOLT
93502-05016B
|
