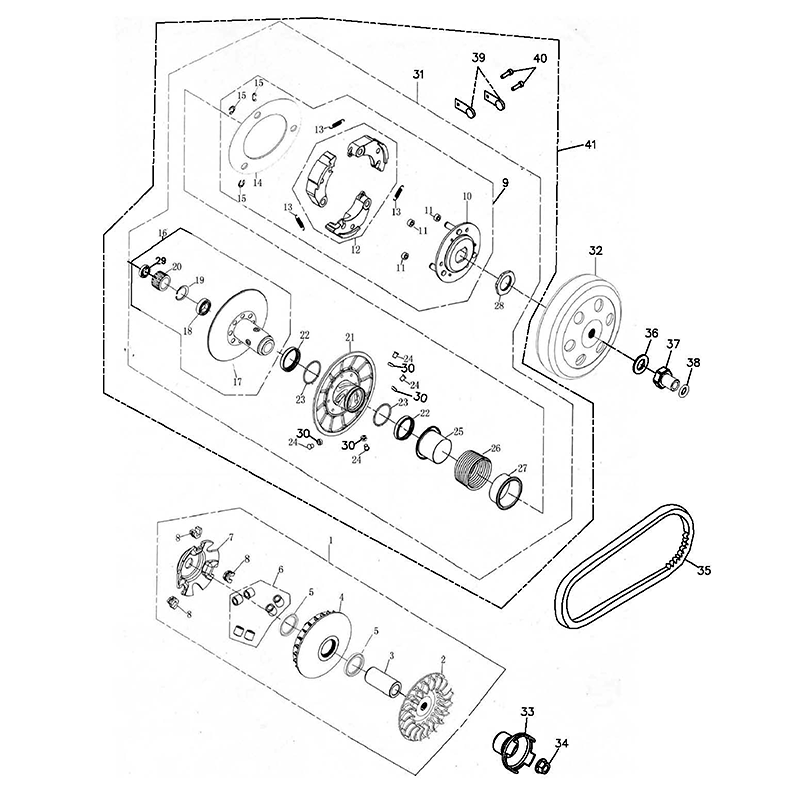

Driven Pulley

Change Assembly

Driven Pulley
# Product Name Req'd Price:
1 Movable Drive Face Ass'Y
22103-225-00A
2 Drive Face
22102-225-000
3 Bushing, 19*27*62.5
96401-192763
4 Face Comp Movable Drive
22110-225-000
5 Oil Seal, 26*35*4
96500-26354
$4.98
6 Weight Roller Set
22121-225-000
$31.75
7 Cam Plate
22131-225-000
$11.72
8 Slide Piece
22132-225-000
$3.62
9 Plate Ass'Y Drive
22001-225-000
10 Drive Plate
22350-225-000
11 Clutch Damper Bubber
22804-225-000
$1.87
12 Clutch Weight Set
22535-225-000
13 Spring Clutch
22401-225-000
14 Clutch Side Plate
22351-225-000
15 External Cir Clip, ETW-7
94511-0700E
$0.50
16 Cvt Drive Unit
23200-225-000
17 Face Ass'Y Driven
23210-225-000
18 Radial Ball Bearing, 6902LU C3
96100-6902LU
19 Internal Cir Clip, RTW-28
94512-2800R
20 Needle Bearing, 22*31*12
96200-223112
Showing 1 to 20 of 41 (3 Pages)
