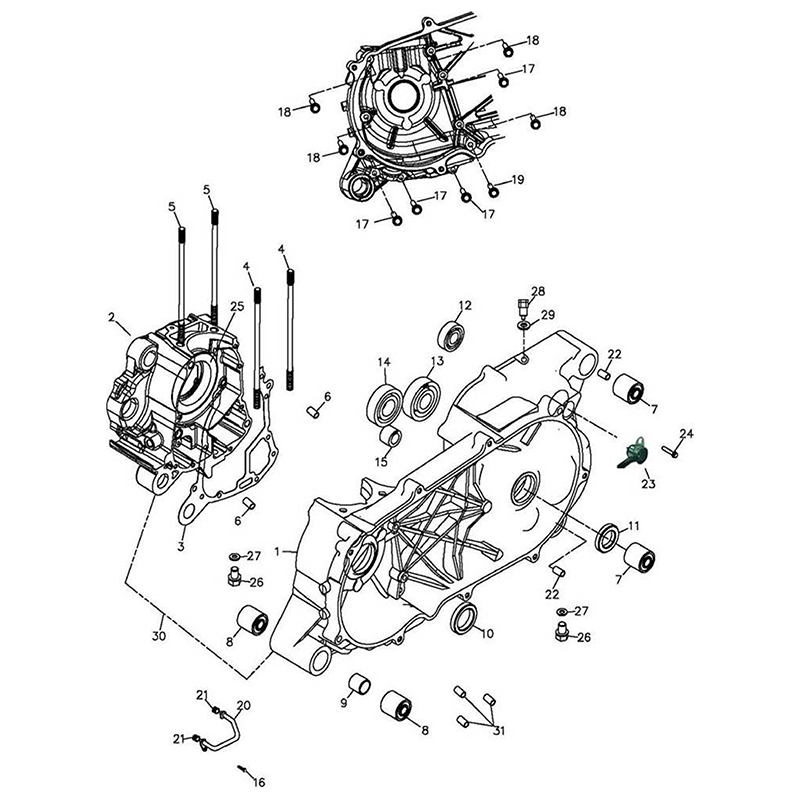

Crankcase

Change Assembly

Crankcase
# Product Name Req'd Price:
1 L. Crank Case Comp
11201-272-001
2 Right Crankcase
11101-272-000
3 Crankcase Gasket
11191-225-000
$11.77
4 Stud Bolt, 8*195.5
91001-08187C
$7.75
5 Stud Bolt, 8*179
91001-08179C
$8.33
6 Dowel Pin, 6.3*8*14
94301-08140
$1.26
7 Rubber Bushing, 10*28*29
96400-102829
8 Bush, 10*26*32
96400-102632
9 Bushing, 10*18*47.6
96401-101848
10 Oil Seal, TC28407
96500-28407
$12.06
11 Oil Seal, 22*36*6
96500-22366
$4.02
12 Radial Ball Bearing, 6202
96100-62020
13 Radial Ball Bearing, 6304
96100-63040
$17.43
14 Radial Ball Bearing, TMB2/22CCS15
96100-TMB222
$36.56
15 Needle Bearing, NK142216
96200-NK142216
$28.98
16 Hex Flange Bolt, 6*12
96000-06012-08B
$0.67
17 Hex Flange Bolt, 6*65
96000-06065-10B
$2.09
18 Hex Washer Face Bolt, 6*75
96000-06075-10B
19 Hex Washer Face Bolt, 6*52
96000-06052-10B
20 Oil Pipe Comp.
15101-225-001
Showing 1 to 20 of 31 (2 Pages)
