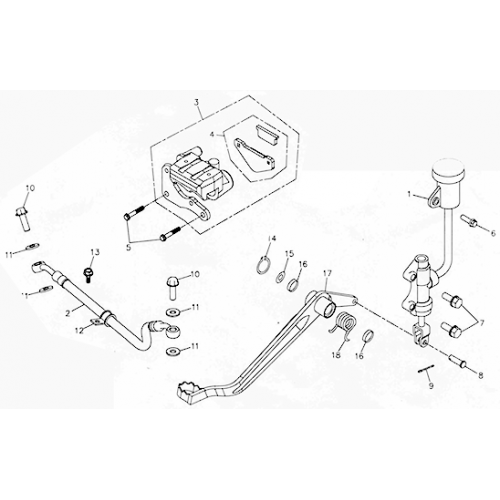

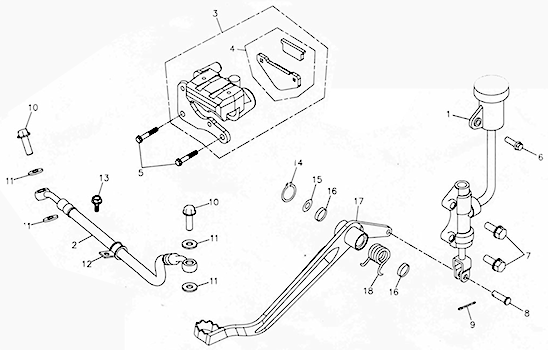

Rear Brake (Adly ATV 300U)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Master Cylinder Sub Ass'Y
43500-169-000
|
$97.64 | ||
| 2 |
Rear Brake Hose Ass'Y
43460-169-000
|
$59.14 | ||
| 3 |
Rear Brake Caliper Ass'Y
43000-168-000
|
|||
| 4 |
Rear Brake Pad Kit
45130-168-000
|
|||
| 5 |
Hex Washer Face Bolt, 10*28
96000-10028-14G
|
$3.26 | ||
| 6 |
Hex Washer Face Bolt, 6*15
96000-06015-10G
|
$1.47 | ||
| 7 |
Hex Flange Bolt, M8*25
96000-08025-12G
|
$2.01 | ||
| 8 |
Fix Pin, 6mm
45605-169-000
|
|||
| 9 |
Cotter Pin, 2*20
94201-02200
|
$0.92 | ||
| 10 |
Brake Hose Fix Bolt, 10*22
45456-107-000
|
$2.43 | ||
| 11 |
Copper Plain Washer, 10.2*15*1
94103-1015010
|
$2.43 | ||
| 12 |
Brake Hose Clamp
45452-197-000
|
$4.18 | ||
| 13 |
Hex Washer Face Bolt, 6*12
96000-06012-10G
|
$1.34 | ||
| 14 |
External Circlip, STW-17
94511-1700S
|
|||
| 15 |
Plain Washer, 17.6*31*2.3
94101-1731023
|
$4.18 | ||
| 16 |
Oil Ring, 16.7*3.2
91316-169-000
|
$1.14 | ||
| 17 |
Brake Pedal Comp
46500-169-000
|
|||
| 18 |
Return Spring
46501-169-000
|
$5.86 |
