Right Crankcase Cover (Adly ATV 300S Interceptor)

Change Assembly

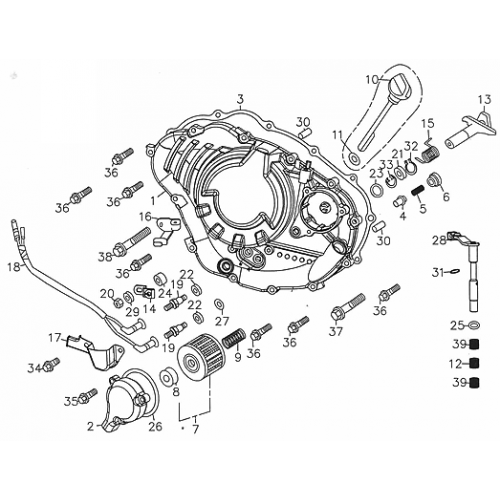

Right Crankcase Cover (Adly ATV 300S Interceptor)
# Product Code: Product Name Req'd Price:
1 11330-169-000 Right Crankcase Cover $86.23
2 11333-169-000 Oil Filter Cover $21.83
3 11393-169-000 R. Crankcase Cover Gasket $13.10
4 15231-169-000 Relief Valve $3.00
5 15232-169-000 Relief Valve Spring $0.69
6 15233-169-000 Relief Valve Cap, 14mm $7.28
7 15412-169-000 Oil Filter Element $10.48
8 15413-169-000 Filter Rubber $2.77
9 15414-169-000 Oil Filter Element Setting Spring $1.59
10 1565A-120-000 Oil Gauge Ass'Y $5.46
11 91318-108-000 Oil Ring, 18*3 $0.69
12 22815-169-000 Clutch Lever Spring $2.56
13 24860-169-000 Reverse Stopper Shaft Comp. $13.10
14 24865-169-000 Reverse Stopper Lever $2.22
15 24867-169-000 Reverse Stopper Spring $3.40
16 24871-169-000 Reverse Cable Bracket $3.94
17 24880-169-000 Switch Cover $3.94
18 32102-169-000 Switch Wire $5.82
19 35750-169-000 Contact Switch Ass'Y $13.10
20 90351-06000C Hex Flange Nylon Nut, M6 $2.22
Showing 1 to 20 of 39 (2 Pages)
