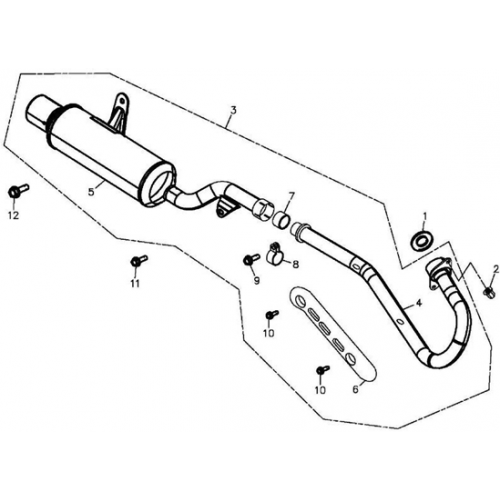

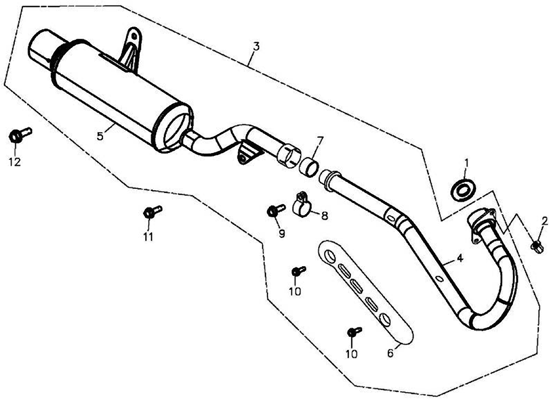

Muffler (Adly ATV 300S Interceptor)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Exhaust Pipe Gasket
18291-169-000
|
$9.37 | ||
| 2 |
Cap Nut, 8mm
90301-08000C
|
$7.32 | ||
| 3 |
Exhaust Pipe Ass'Y
18300-169-000
|
|||
| 4 |
Exhaust Pipe Of Front Section
18311-169-000
|
|||
| 5 |
Silencer Muffler
18321-169-000
|
$216.60 | ||
| 6 |
Muffler Shroud
18318-169-000
|
$12.59 | ||
| 7 |
Pipe Gasket
18308-169-000
|
$20.52 | ||
| 8 |
Muffler Clamp
18302-169-000
|
$9.96 | ||
| 9 |
Hex Flange Bolt, M6*30
96000-06030-10G
|
$1.33 | ||
| 10 |
Hex Flange Bolt, 6*10
96000-06010-08B
|
|||
| 11 |
Hex Flange Bolt, M8*16
96000-08016-12G
|
$2.01 | ||
| 12 |
Hex Washer Face Bolt, 10*20
96000-10020-14G
|
$3.01 |
