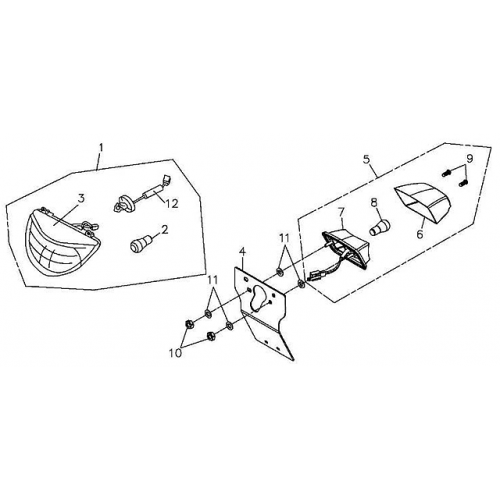

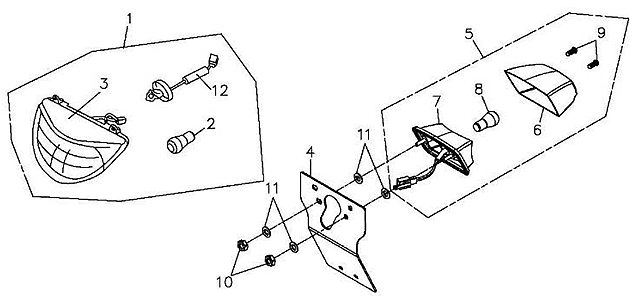

Head/Tail Light (Adly ATV 300S Interceptor)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Head Light Ass'Y (E-Mark)
33100-190-000
|
$70.40 $52.80 | ||
| 2 |
Head Light Bulb (E-Mark), 12V35W35W
34901-110-00A
|
$15.82 $11.86 | ||
| 3 |
Head Light Cover (Dot)
33110-190-000
|
$42.57 $31.93 | ||
| 4 |
Tail Light Mounting Bracket
50357-197-000
|
$17.00 $12.75 | ||
| 5 |
Tail Light Ass'Y, E/SAE MARK
33700-154-001
|
$49.17 $36.87 | ||
| 6 |
Tail Light Lens, E/SAE MARK
33702-154-001
|
$11.72 $8.79 | ||
| 7 |
Rear Light Socket
33711-154-000
|
$16.47 $12.36 | ||
| 8 |
Tail Light Bulb, 12V 21/5W
34906-128-000
|
$5.07 $3.80 | ||
| 9 |
Pan Phillips Screw, 3.5*38
93905-03538
|
$0.84 $0.63 | ||
| 10 |
Nut Nylon, 6mm
90350-06000C
|
|||
| 11 |
Plain Washer, 6*18*2
94101-0618020B
|
$0.50 $0.38 | ||
| 12 |
Head Light Wire
34801-190-000
|
$21.09 $15.82 |
