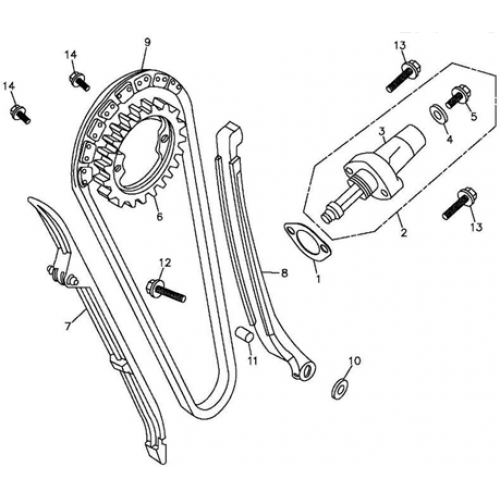

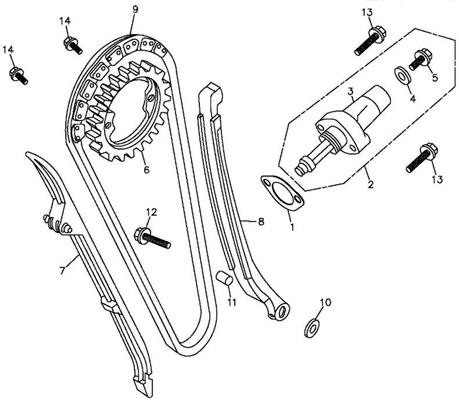

Cam Chain, Tensioner (Adly ATV 300S Interceptor)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Tensioner Gasket
14523-169-000
|
$1.67 | ||
| 2 |
Tensioner Ass'Y
14520-169-000
|
$36.56 | ||
| 3 |
Tensioner Lifter Body
14521-169-000
|
$11.86 | ||
| 4 |
Plain Washer, 6*14*1
94101-0614010
|
|||
| 5 |
Hex Flange Bolt, 6*13
96000-06013-08
|
$0.67 | ||
| 6 |
Camshaft Sprocket, 38T
14321-169-0A1
|
$36.56 | ||
| 7 |
Cam Chain Guide Comp
14500-169-000
|
$25.50 | ||
| 8 |
Cam Chain Tensioner
14550-169-000
|
|||
| 9 |
Cam Chain
14401-169-0A0
|
$72.69 | ||
| 10 |
Plain Washer, 6.5*15*1
94101-0615010B
|
$0.50 | ||
| 11 |
Tensioner Collar, 6*10*9.2
14554-169-000
|
$4.18 | ||
| 12 |
Hex Flange Bolt, 6*25
96000-06025-10B
|
$1.00 | ||
| 13 |
Hex Flange Bolt, 6*25
96000-06025-08B
|
$2.51 | ||
| 14 |
Hex Flange Bolt, 7*11
96000-07011-10B
|
$0.84 |
