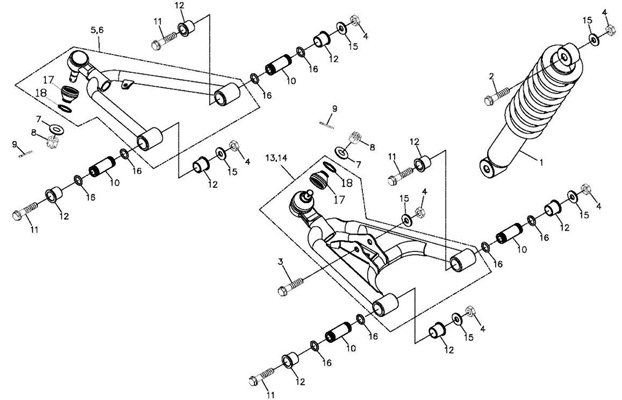

Arm (Adly ATV 300S Interceptor)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Front Cushion Ass`Y
51400-182-000
|
$132.37 | ||
| 2 |
Hex Flange Bolt, M10*40
96000-10040-14G
|
$4.02 | ||
| 3 |
Hex Washer Face Bolt, 10*55
96000-10055-14G
|
$4.69 | ||
| 4 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 | ||
| 5 |
R. Upper Suspension Arm
51210-169-000BK
|
$104.72 | ||
| 6 |
L. Upper Suspension Arm
51310-169-000BK
|
$104.72 | ||
| 7 |
Plain Washer, 12*22*2
94101-1222020C
|
$0.84 | ||
| 8 |
Hex,Slotted Nut, 12mm
94051-12000-17G
|
$3.77 | ||
| 9 |
Cotter Pin, 3*32
94201-30320B
|
$0.42 | ||
| 10 |
Bushing, 10*17*44.5
51350-169-00A
|
$10.98 | ||
| 11 |
Hex Flange Bolt, M10*65
96000-10065-14G
|
$4.69 | ||
| 12 |
Bush, 17*23.1*19.2
51202-169-000
|
$5.30 | ||
| 13 |
R. Lower Suspension Arm
51610-169-000BK
|
$98.19 | ||
| 14 |
Left Down Suspension Arm
51510-169-000BK
|
$132.37 | ||
| 15 |
Copper Plain Washer, 10*20*2
94101-1020020G
|
$0.84 | ||
| 16 |
O-Ring, 12.5*2.4
91312-169-00A
|
$1.51 | ||
| 17 |
Dust Seal
51212-169-000
|
$4.37 | ||
| 18 |
Spring
51219-169-000
|
$2.77 |
