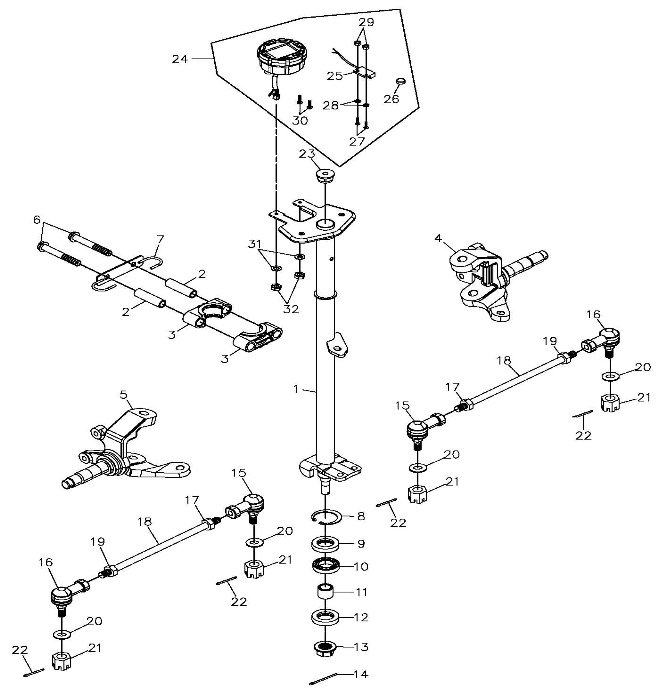

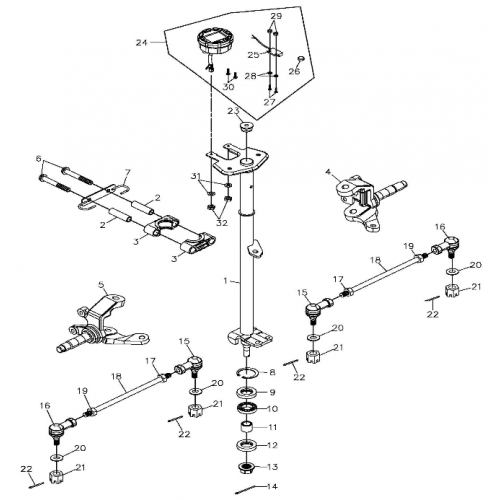

Steering (Adly ATV 300S II CrossXRoad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Steering Shaft Ass'Y
51109-197-000BK
|
|||
| 2 |
Holder Spacer Coller, 10*14.2*50
51114-169-000
|
$8.79 | ||
| 3 |
Steering Shaft Holder
51113-169-000
|
$6.59 | ||
| 4 |
Right Knuckle Ass'Y
44520-169-000
|
|||
| 5 |
Left Knuckle Ass'Y
44510-169-000
|
$97.33 | ||
| 6 |
Hex Washer Face Bolt, 10*65
96000-10065-12G
|
$4.69 | ||
| 7 |
Bracket
45451-197-000
|
$10.54 | ||
| 8 |
Internal Cir Clip, RTW-40
94512-4000R
|
|||
| 9 |
Oil Seal, 27*40*8
96500-274008
|
$3.35 | ||
| 10 |
Radial Ball Bearing, 6203ZZCS05/2A
96100-6203ZZ
|
$19.77 | ||
| 11 |
Steering Shaft Bushing, 14.5*22*13
51120-169-000
|
$7.32 | ||
| 12 |
Oil Seal, 22*35*7
96500-22357
|
|||
| 13 |
Nylon Nut, M14
90350-14000G
|
$2.59 | ||
| 14 |
Cotter Pin, 3*45
94201-03450
|
$0.50 | ||
| 15 |
Ball Joint,Left Thread
44511-169-000
|
$36.56 | ||
| 16 |
Ball Joint,Right Thread
44521-169-000
|
|||
| 17 |
Hex Nut, M12
94001-12000LC
|
$2.68 | ||
| 18 |
Rod, M12*235
91001-12235B
|
$11.86 | ||
| 19 |
Hex Nut, M12
94001-12000B
|
$1.67 | ||
| 20 |
Plain Washer, 10*20*2
94101-1020020
|
$0.59 |
