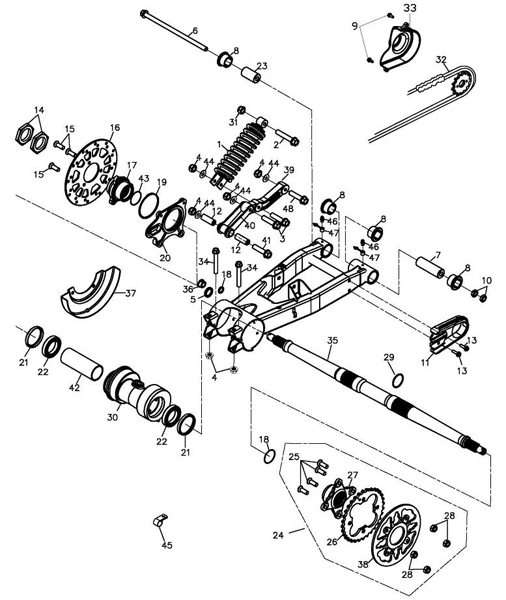

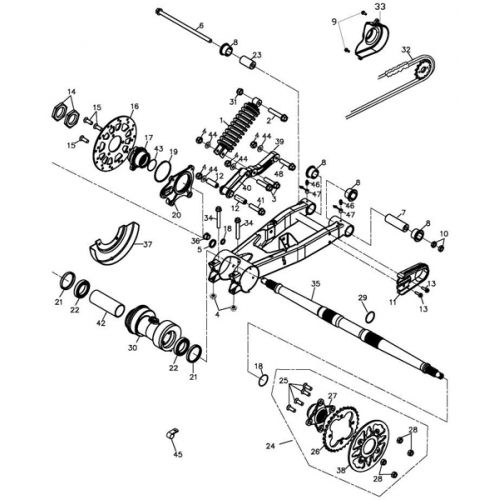

Swing Arm Sub-assembly (Adly ATV 220S)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Cushion Ass'Y, 370mm(ATV-220)
52400-256-000
|
$199.22 | ||
| 2 |
Hex Flange Bolt, M12*65
96000-1206517GL
|
$7.61 | ||
| 3 |
Hex Washer Face Bolt, 10*55
96000-10055-14G
|
$4.69 | ||
| 4 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 | ||
| 5 |
Oil Ring, 16*2.5
91316-179-000
|
$1.14 | ||
| 6 |
Swing Arm Bolt, L=295mm
52116-261-000
|
$18.45 | ||
| 7 |
Bushing-Inside
52119-261-000
|
$29.00 | ||
| 8 |
Cushion
52103-179-000
|
$4.18 | ||
| 9 |
Hex Flange Bolt, M8*16
96000-08016-12G
|
$2.01 | ||
| 10 |
Hex Nut, 12mm
94001-12000Z
|
|||
| 11 |
Shoe Slider
40533-261-000
|
|||
| 12 |
Bush, 10*22*25/30
96400-102230
|
|||
| 13 |
Hex Bolt(Triange), 6*20
92003-06020K
|
|||
| 14 |
Hex Nut, M38*15*P1.5
94001-38150B
|
|||
| 15 |
Hex Socket Flat Head Bolt, M8*18
93901-08018GL
|
$3.35 | ||
| 16 |
Rear Brake Disc, D200
42105-169-00A
|
|||
| 17 |
Rear Brake Disc Flange Comp.
42106-169-000
|
$47.27 | ||
| 18 |
Oil Ring, 8*1.9
91308-108-000
|
$0.59 | ||
| 19 |
External Cipclip, 70
94511-7000S
|
$10.62 | ||
| 20 |
Rear Caliper Stay
52120-225-000
|
