Cylinder (Adly ATV 220S)

Change Assembly

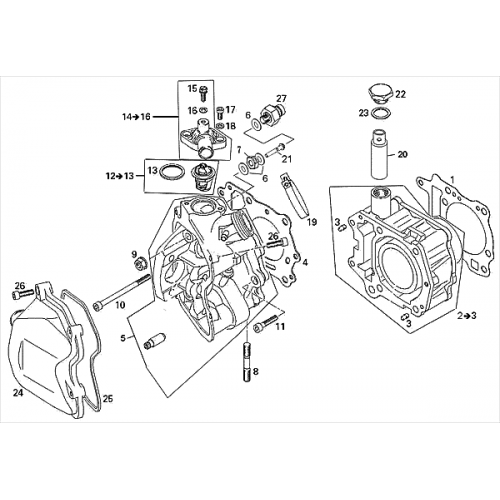

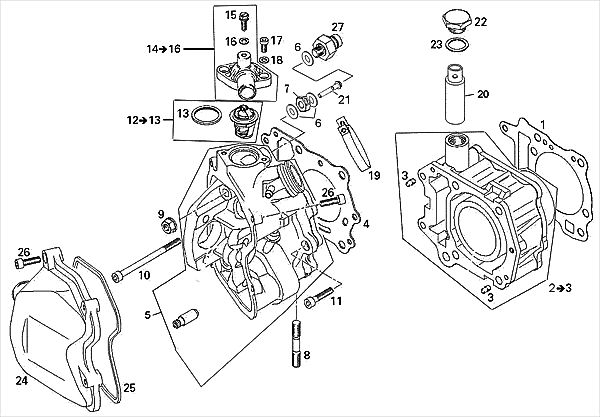

Cylinder (Adly ATV 220S)
# Product Name Req'd Price:
1 Cylinder Gasket
12191-179-000
2 Cylinder
12101-179-0A0
$128.99
3 Dowel Pin, 5*10
94301-05010
$3.35
4 Cylinder Head Gasket
12251-179-000
5 Cylinder Head Ass'Y
12200-179-000
$293.99
6 Copper Plain Washer, 10*15*1.2
94103-1015012
$2.05
7 3-Way Joint
35501-179-000
$11.72
8 Stud Bolt, 8*50
91001-08050C
$3.77
9 Hex Flange Nut With Serration, 8mm
94050-08000C
$0.84
10 Hex Socket Bolt, 6*90
91000-06090C
$2.85
11 Hex Socket Bolt, 6*30
91000-06030C
$3.68
12 Thermostat With Gasket
19310-179-000
$67.76
13 Thermostat Gasket
19312-179-000
$4.76
14 Thermostat Cover
19311-261-000
$5.86
15 Hex Washer Face Truss Head Phillips Bolt, 5*13
93906-05013
16 Rubber Washer, 5*11*1
94102-0511010
$0.67
17 Hex Socket Bolt, 5*12
91000-05012C
$0.74
18 Plain Washer, 5*10*1.0
94101-0510010C
$2.09
19 Hose Clamp
14110-179-000
$3.35
20 Chain Tension Paiston
40546-179-000
$49.65
Showing 1 to 20 of 27 (2 Pages)
