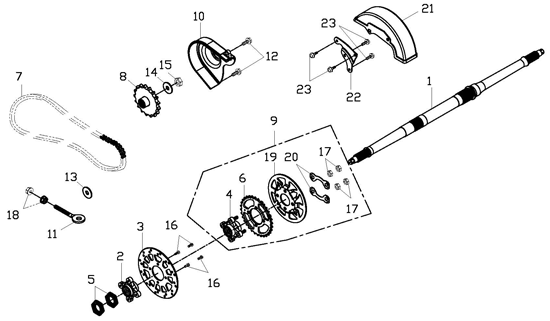

Rear Wheel Axle, Chain (Adly ATV 150S Interceptor)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Axle, 840mm
42301-197-001
|
$212.59 | ||
| 2 |
Rear Brake Panel Connector
42106-197-001
|
$36.56 | ||
| 3 |
Brake Disc
45015-197-00A
|
$72.69 | ||
| 4 |
Rear Sprocket Flange
42610-197-001
|
$44.12 | ||
| 5 |
Hex Nut, M33*14*P1.5
94001-33140G
|
$10.98 | ||
| 6 |
Rear Sprocket, 520-32T
41201-228-000
|
$36.87 | ||
| 7 |
Drive Chain, 520*82L
40530-197-000
|
$64.99 | ||
| 8 |
Drive Sprocket Ass'Y, 16T
23801-197-001
|
$44.12 | ||
| 9 |
Rear Sprocket Ass'Y, 32T
42600-228-000
|
$119.00 | ||
| 10 |
Front Chain Cover
40511-197-000
|
$11.72 | ||
| 11 |
Drive Chain Adjuster, 8MM
40543-145-001
|
$6.69 | ||
| 12 |
Hex Flange Bolt, 6*16
96000-06016-10G
|
$0.67 | ||
| 13 |
Plain Washer, 12*25*5
94101-1225050C
|
$2.01 | ||
| 14 |
Plain Washer, 16*29*3
94101-1629030G
|
$1.81 | ||
| 15 |
Nut Nylon, 16mm
90350-16000C
|
$2.09 | ||
| 16 |
Rear Brake Bolt
45016-146-000
|
$4.18 | ||
| 17 |
Hex Flange Nut With Serration, 10mm
94050-10000C
|
$1.26 | ||
| 18 |
Hex Flange Nut With Serration, 8mm
94050-08000C
|
$0.84 | ||
| 19 |
Chain Guide
40516-197-000
|
$44.44 | ||
| 20 |
Fixed Washer
41206-197-000
|
$4.18 |
