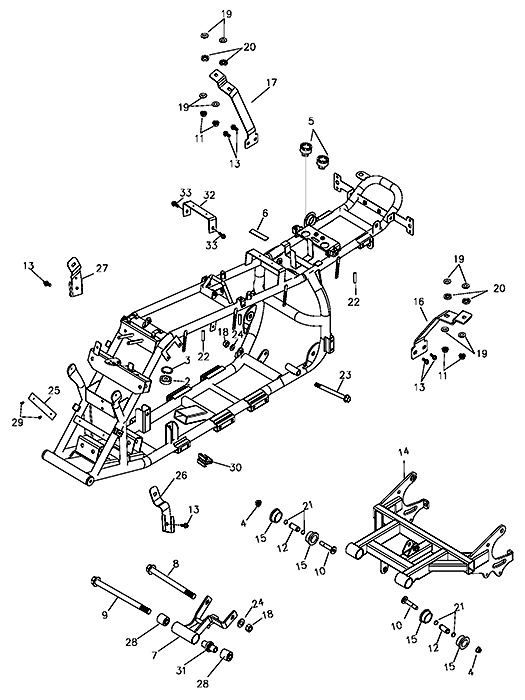

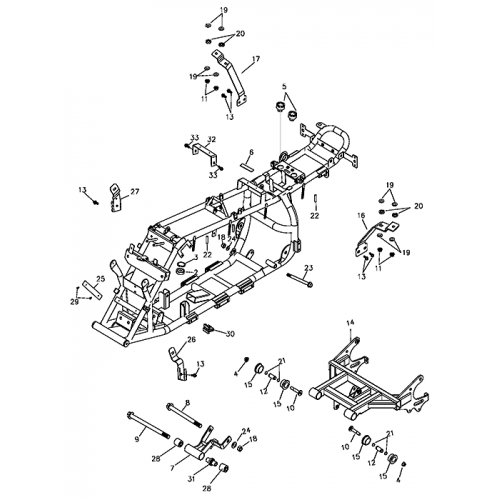

Frame Body (Adly Atv 100D)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Frame Comp
50100-230-000
|
|||
| 2 |
Radial Ball Bearing, 6002ZZ
96100-6002ZZ
|
$11.98 | ||
| 3 |
Internal Cir Clip, RTW-32
94512-3200R
|
$1.34 | ||
| 4 |
Nut, 14mm
94053-14000G
|
|||
| 5 |
Rubber
77211-145-001
|
$2.68 | ||
| 6 |
Sponge Pad, 15*100*4
17505-145-000
|
$4.02 | ||
| 7 |
Bracket Engine Assy
50350-218-002
|
|||
| 8 |
Hex Flange Bolt, M10*105
96000-10105-14G
|
|||
| 9 |
Hex Washer Face Bolt, 10*120
96000-10120-14G
|
$6.59 | ||
| 10 |
Swing Arm Bolt
52116-201-000
|
|||
| 11 |
Nylon Nut, M6
90350-06000G
|
$0.84 | ||
| 12 |
Swing Arm Spacer, 2T-50.100
52104-201-000
|
|||
| 13 |
Hex Washer Face Bolt, 6*14
92006-06014-10G
|
$2.09 | ||
| 14 |
Swing Arm Sub Assy
52100-230-000
|
|||
| 15 |
Bush
52103-145-000
|
$5.30 | ||
| 16 |
Rear Cover Up Left Fixed Plate
83402-230-000
|
|||
| 17 |
Rear Cover Up Right Fixed Plate
83403-230-000
|
|||
| 18 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 | ||
| 19 |
Plain Washer (Black Zinc), 6*18*2
94101-0618020K
|
$0.60 | ||
| 20 |
Rubber Washer, 5*22*3.2
94102-145-0A1
|
$4.01 |
