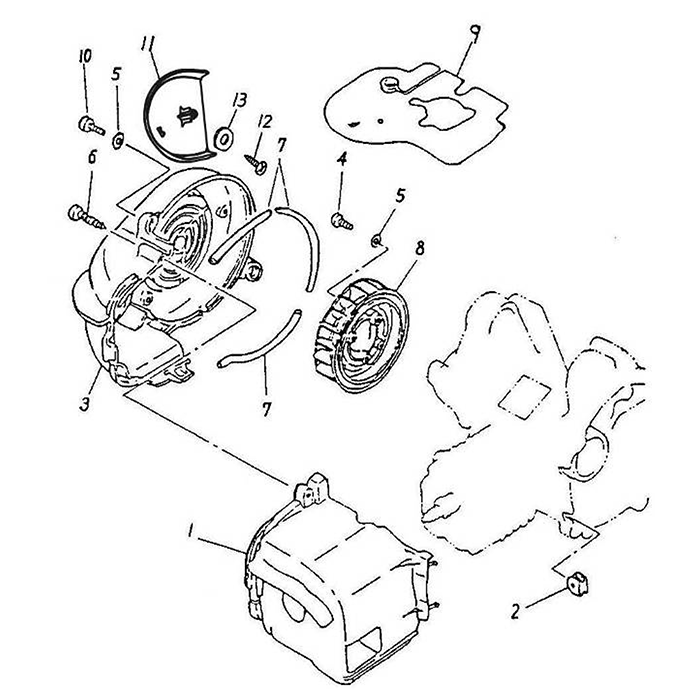

Fan | Air Shroud (Adly Atv 100D)

Change Assembly

Fan | Air Shroud (Adly Atv 100D)
# Product Name Req'd Price:
1 Cylinder Air Shroud
19620-117-001
$11.72
2 Grommet
83552-116-000
3 Generator Cover
19610-116-000
$22.99
4 Hex Socket Bolt, 6*16
91000-06016K
$1.00
5 Plain Washer, 6*13*1
94101-0613010B
$0.50
6 Pan Head Tapping Screw (Black Zinc), 6*40
93903-06040K
7 Damper
17632-116-000
8 Fan
19510-116-000
9 Deflector
55122-116-000
10 Hex Socket Bolt, 6*20
91000-06020B
$0.67
11 Generator Outer Cover
19612-145-00A
$8.39
12 Tapping Screw Truss Head Phillps, 5*16
93903-05016K
$0.72
13 Plain Washer, 6*19*1
94101-0619010B
$0.50
Showing 1 to 13 of 13 (1 Pages)
